Home Automation

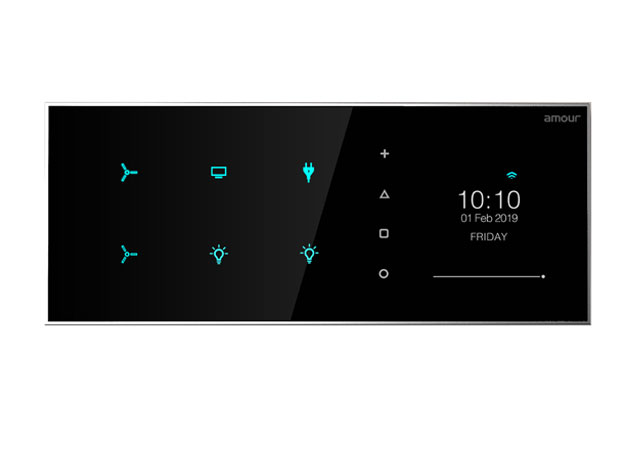

Home Automation is the product of Amour Automation. Amour is all about beauty. It comes with sleek design with a metallic ring around the toughened glass capacitive touch screen panel. Amour has been designed by a well renowned two times Red Dot awardee designer. Amour has been picked up by various organizations in India and Globally for nominations in product design competitions. We see Amour home automation as a jewel for walls.

Product Description

Home Automation is the product of Amour Automation. Amour is all about beauty. It comes with sleek design with a metallic ring around the toughened glass capacitive touch screen panel. Amour has been designed by a well renowned two times Red Dot awardee designer. Amour has been picked up by various organizations in India and Globally for nominations in product design competitions. We see Amour home automation as a jewel for walls.



The product variants and specifications are given below:



  • Capacitive touch screen
  • 1 x 40 Amp Switches and 5 x 7 Amp switches
  • 1 x regulator/ curtain control
  • 2 x Two-way switches
  • Black/ Marble/ Teak or custom printed face
  • SOS feature
  • Easy installation, 6M box size
  • Works with & without internet
  • Android & iOS App
  • No special wiring, no CAT6, no backend and no static IP needed

Technical Details

Model No. AMR419
Channels 6 No.
Size 8”x3” box [6 Module] retrofitting
Weight 0.8 Kg net
Casing ABS [patented]
Electrical Circuit Company owned [patented]
Touchscreen Capacitive with TFT display
Connectivity With and without Internet
Voice recognition Through Amazon Alexa
On/Off Circuits 1x(23 A), 1x(10 A), 4x(7 A)
Two-way switches 1 no. 10Amp (2 nos. option available)
Dimmers/ Regulators 4-step
Scene selection Preset/ On panel programmable
Wi-Fi protocol IEEE 802.11 b/g/n
Frequency 2.4 GHz
Working modes Hotspot and Internet
Mobile App Amour Home Automation
Surge Protection 2.5 kV
Over Voltage Protection Yes
Short Circuit Protection Continuous
Operating Temperature -30o C to 70o C
Storage temperature -40o C to 85o C
Servers Amazon Web Server (AWS)
Mobile App In-house development
Key features Switching, Scheduling, Locking, Scenes, Energy Management, SOS
Components RoHS and CE certified
Safety Approvals for components UL 60601-1, IEC 60601-1, EN 60601-1, UL60950-1, TUV EN60950-1
Input Voltage 100V to 240V (universal input)
Terminal Screws In-built (safe for handling)
CAT6 wiring Not required
Backend/hub Not required
Static IP Not required
Additional wiring Not required
Transponder Not required
IR In-built
WiFi In-built
Certifications CE certified
Assign any switch on inverter Yes
Guarantee 3 years
Warranty 2 years
Manufacturing Made in India
